Description:

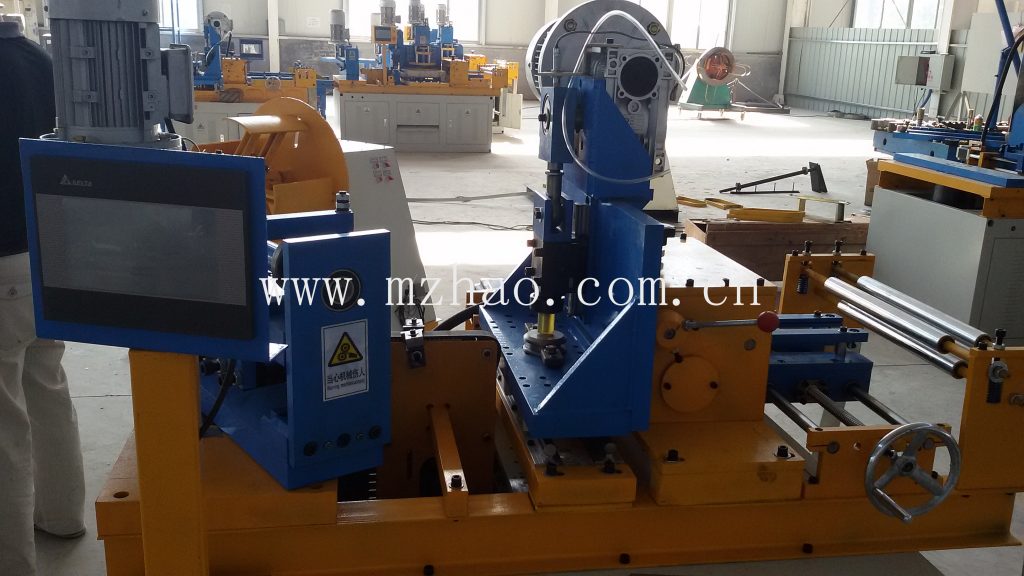

Compact Step-lap CRGO Mitred Core Cut to Length Machine Line is specially designed for cutting CRGO coils into lamination strips for transformer cores,
welding machine cores, and reactor cores.
This machine is developped by ourselves, similar to Georg swing shear cut to length line. It combines V notching, O punching and swing shear cutting together for cutting mitred cores full automatically.
It has max. 8 step-lap function, both horizontal and vertical step-lap. It is also suitable for cutting center limbs full automatically.
Lamination strips can be cut by this machine
:
Main features |step lap CRGO mitred core cutting to length machine line|
— Delta AC servo system plus Delta PLC professional module achieve high precision feeding, quick response, high precision positioning, low noise; Max. feeding speed 100m/min, starting & braking time is less than 10ms.
— Full automatic finishing cutting, swinging angle, counting, cutting right angle, trapezoid, parallelogram, fish-head, etc.
— Equipped with online punching & V notching device, high productivity
— Cutting, punching and notching motors are inverter control, quick and low noise (servo drive is optional)
— Screw rod center positioning, driven by step motor, automatic positioning
— Cutting blade, notching tool and punching tool are made by special carbide alloy, long life, less burr
— Step-lap function, max. 8 steps
Machine buildup |step lap CRGO mitred core cutting to length machine line|
– Inverter-controlled decoiler |step lap CRGO mitred core cutting to length machine line|
– Automatic centering & guiding devices |step lap CRGO mitred core cutting to length machine line|
– High speed servo feeding device |step lap CRGO mitred core cutting to length machine line|
– Online V notching device |step lap CRGO mitred core cutting to length machine line|
– Online O punching device |step lap CRGO mitred core cutting to length machine line|
– Servo swinging and cutting device |step lap CRGO mitred core cutting to length machine line|
– Belt transmitting table |step lap CRGO mitred core cutting to length machine line|
– Stacking table |step lap CRGO mitred core cutting to length machine line|
– Control system |step-lap CRGO mitred core cutting machine| step-lap CRGO mitred core cutting machine| step-lap CRGO mitred core cutting machine|
IV Main technical data |step lap CRGO mitred core cutting to length machine line|
| No. | Item | Data |
| 1 | Type Code | JN-3003C / 4003C/ 5003C/ 6003C |
| 2 | CRGO thickness | 0.23-0.6mm |
| 3 | CRGO coil width | 30-300/ 30-400/ 30-500/ 30-600mm |
| 4 | Cutting length | 1-999999mm |
| 5 | Cut-to-length tolerance | +/-0.1mm |
| 6 | Cutting angle tolerance | +/-0.03° |
| 7 | Hole position tolerance | +/-0.1mm |
| 8 | Notch position tolerance | +/-0.1mm |
| 9 | Burr height | Less than 0.02mm |
| 10 | Feeding speed | Max. 100m/min |
| 11 | Production speed | 30~60 pieces per minute |
| 12 | Punching/notching die | Carbide alloy |
| 13 | Cutting blade | Carbide alloy |
| 14 | Die & blade life | More than 1.2 million times before grinding |
| 15 | Max. step-lap stroke | 40mm |
| 16 | Step-lap quantities | 1, 2, 3, 4, 5, 6, 7 |
| 17 | Servo motors | Delta from Taiwan |
