SILICAL GEL BREATHER
FEATURE
BODY : ALUNIMIUM PRESSURE DIE CASTED
CONTIANERS
Arycylic/polycarbonate ( with oils level marking )
Gasket
Nitrile
Silica gel
Deep blue ( change of colour blue to pink ) / ORANGE
PANIT
POWDER COATED
MOUTING
THREADED 1/2” 3/4” 1”
PACKING :
EACH BREATHER PACKED IN CORRUGATED BOX WITH BOTH ENDS SEALED OIL CUP PACKED LOOSE IN BOX
CAPACITY
CAPACITY OF SILICAGE 0.5KG OR 1 KG

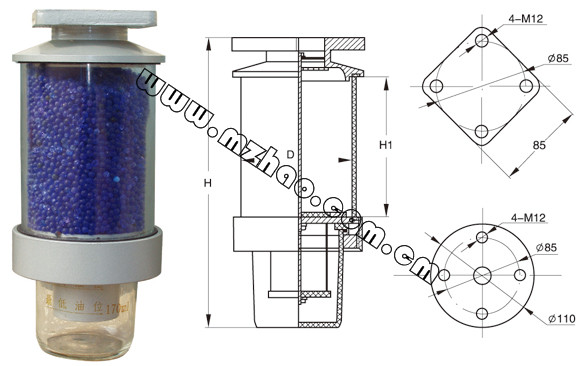

DIN -42567
FORM C
| NO. | H | H1 | D(Dia) |
| XS2-0.2 | 220 | 90 | 90 |
| XS2-0.5 | 270 | 120 | 100 |
| XS2-1.0 | 300 | 150 | 125 |
| XS2-1.5 | 390 | 200 | 125 |
| XS2-2 | 420 | 260 | 140 |
| XS2-3 | 420 | 200 | 165 |
| XS2-5 | 500 | 300 | 165 |
| XS2-6 | 510 | 300 | 200 |
| XS2-7 | 610 | 400 | 200 |
| XS2-9 | 710 | 500 | 200 |
| XS2-10 | 790 | 590 | 200 |
